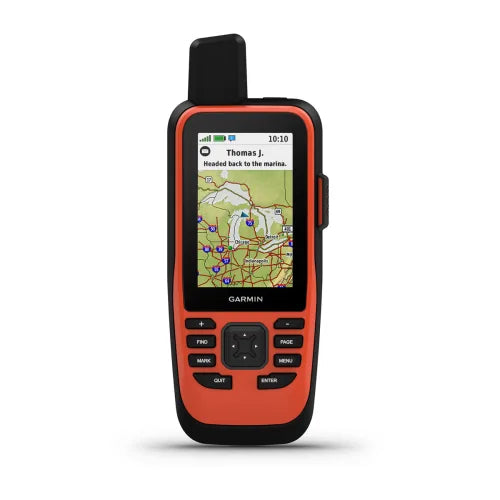

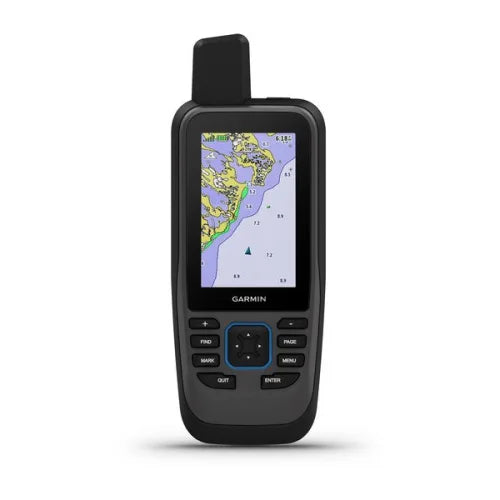

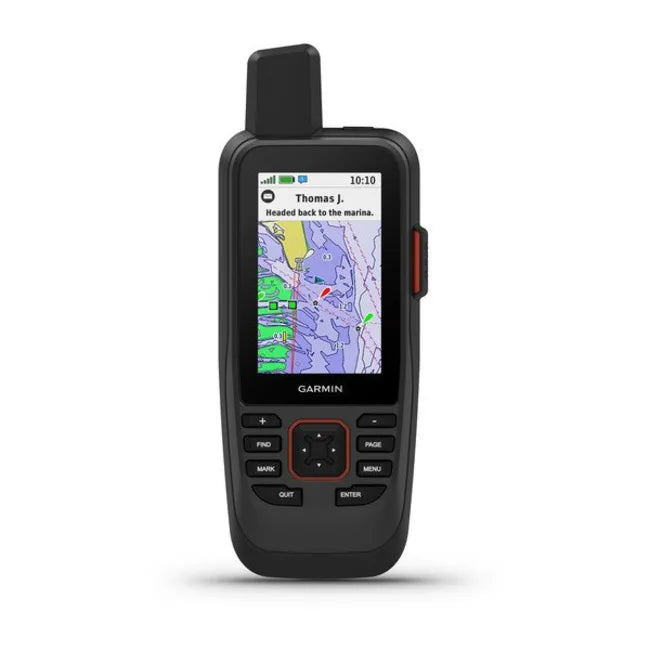

Garmin GPSMAP

Garmin GPSMAP

Let your cast-off dreams take wings with Garmin GPSMAP, a premium marine handheld 86sci loaded with BlueChart g3, Coastal Charts and inReach capabilities perfected to stay on course in the vast expanse of the ocean.

Cruise with confidence as the GPSMAP provides global communications of the GPSMAP 66 series including wireless connectivity on board your marine system. The inReach interactive SOS is always in place to fish you out of unknown boundaries.

Designed to brave the unpredictable marine environment, this water-resistant handheld can stay afloat even as you go for a mid-sea dip. Your marine system is now loaded with Garmin and Navionics data that allows you to glance at the entire scenario with boat data streaming in one go.

GPSMAP lasts up to 35 hours so you can stay over the seas more than a day comfortably. It also comes with a whole 10 min tracking for emergency purposes.

Highlights:

• Set your course with fusion-link audio
• Adjustable GPS filter smooths speed for accurate tracking
• Backup navigator for peace of mind

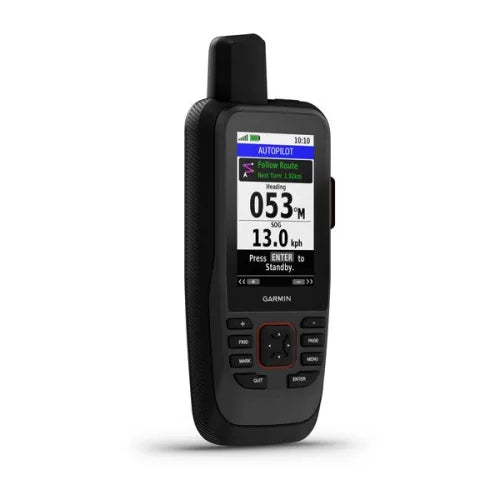

• Autopilot remote when you take a break from the helm
• ABC sensors to read elevation data, monitor weather and 3-axis electronic compass
• Two-way messaging with trip tracking and interactive SOS
• Marine weather notifications via smart apps
• Built-in LED flashlight for emergencies

Specifications:

Lens Material: Chemically strengthened glass

Dimension: 2.65" x 7" x 1.7" (6.75w x 17.8h x 4.4d cm)

Weight: 9.59 oz (272 g)

Water rating: IPX7

MIL-STD-810: yes (thermal, shock, water)

Display Type: transflective, 65K color TFT

Display Size: 1.5"W x 2.5"H (3.8 x 6.3 cm); 3" diag (7.6 cm)

Display resolution: 240 x 400 pixels

Battery type: rechargeable, internal lithium-ion

Battery life: up to 35 hours at 10-minute tracking; up to 200 hours at 30-minute tracking (power save mode)

Memory/History: 16 GB (user space varies based on included mapping)

Interface: High speed microUSB and NMEA 0183 compatible

Maps & Memory

Preloaded maps: Yes (BlueChart® g3 included)

Ability to add maps: Yes

Basemap: Yes

Map segments: 15000

Satellite Imagery: yes (direct to device)

Includes searchable points of interests (parks, campgrounds, scenic lookouts and picnic sites): Yes (downloadable from Garmin Express™)

Displays national, state and local parks, forests, and wilderness areas: Yes (downloadable from Garmin Express™)

External memory storage: yes (32 GB max microSD™ card, not included)

Waypoints/favorites/locations: 10000

Tracks: 250

Navigation Track Log: 20,000 points, 250 saved gpx tracks, 300 saved fit activities

Navigation Routes: 250, 250 points per route; 50 points auto routing

Rinex logging: Yes

Compass: Yes (tilt-compensated 3-axis)

Connections Wireless Connectivity: yes (Wi-Fi®, BLUETOOTH®, ANT+®)

What's in the Box:

1 x GPSMAP 86sci handheld with BlueChart® g3 for the U.S.

1 x Powered mount

1 x Lanyard

1 x USB to Micro USB cable

1 x USB to 2 pin cable

1 x Mounting hardware

1 x Documentation
