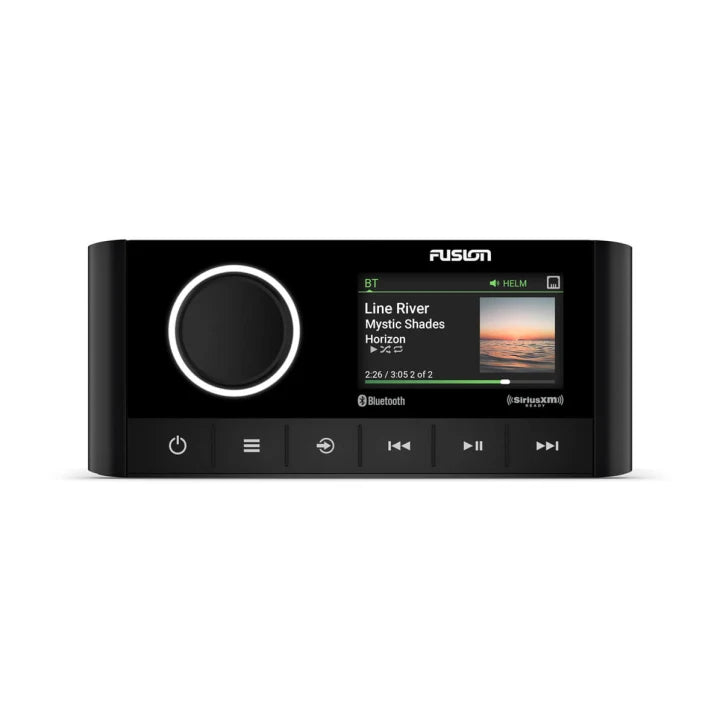

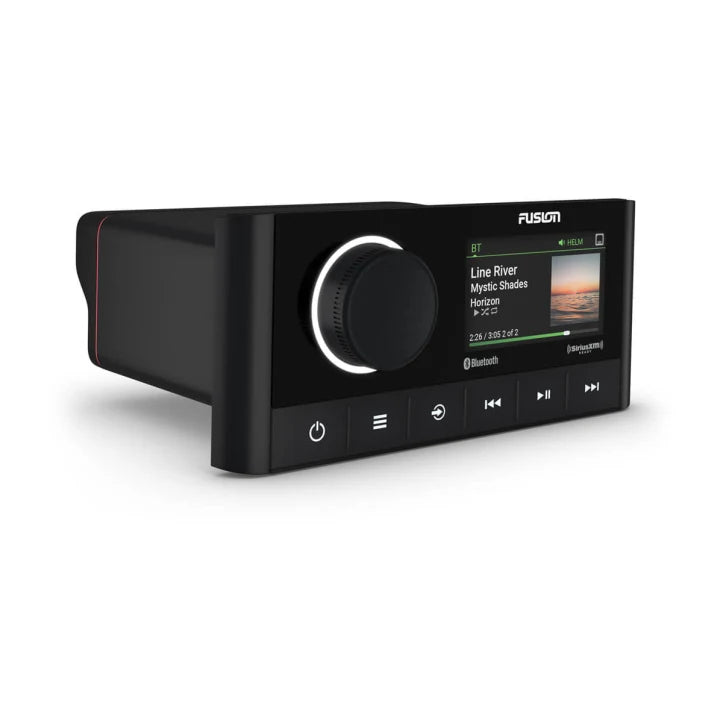

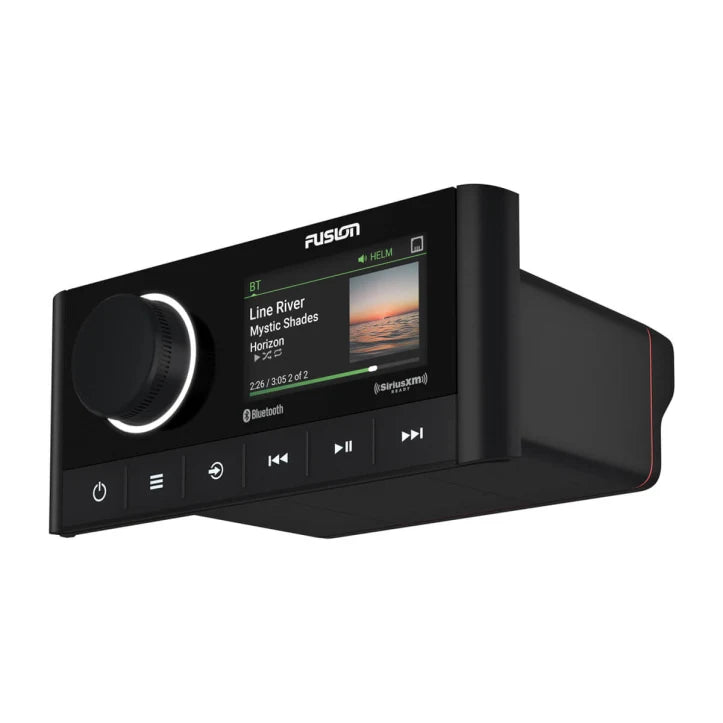

Garmin MS-RA670, Marine Stereo, Retail

Garmin MS-RA670,  Marine Stereo, Retail

Apollo RA670 is the award winning Apollo RA770 reimagined in a compact form factor yet inherits key audio innovations and revolutionary technology of the original Garmin. The Wi-Fi enabled marine stereo lets you custom audio profiles for each zone in your boat delivering personal concert experience from a single interface.

Engineered to TrueMarine standards, Apollo RA670 is a IPX6 and IPX7 rated water resistant module built to resist salt, fog, temperation, vibration and UV, tailor-made to brave all weather conditions out there in the vast expanse of sea.

NMEA 2000 network enabled marine stereo lets you adjust volume settings dynamically to match the speed of your boat. While you can source your music via Bluetooth, UPnP, Optical Audio, Advanced SiriusXM features, DAB+ radio, AM/FM radio, AUX and USB connections, control what you play and how you play with a smart device or your Garmin watch.

Highlights:

Seamless high quality audio streaming with AirPlay2

Faster transfer rate with Wi-Fi tech

Multi-zone tech to control three separate audio zones

Compact form factor

Modern design and aesthetics allows elegant installation

Fusion Digital Signal Processing optimizes audio signal

Easy to install DSP profiles

Ethernet for Wi-Fi connectivity

Stereo grouping with dedicated home zone

Specifications:

Dimension: 6.18" x 2.68" x 4.83" (157 x 68 x 123 mm)

Weight: 1.65 lbs (750 g)

Water rating: IPX6 and IPX7 (front panel only, when properly installed)

Display: 2.7" optically bonded color LCD

Operating temperature: 32° to 122° F (0° to 50° C)

Current (max): 15 A

Networking

NMEA 2000® LEN    1: (50 mA)

BLUETOOTH® wireless range: up to 30 ft

ANT® wireless range: Up to 10 ft

Wireless frequencies/protocols: BLUETOOTH®: 2.4 GHz @ +13.29 dBm nominal ANT®: 2.4 GHz @ +6.92 dBm nominal

Audio Amplifier: Class-D (2 ohm stereo-stable)

Electrical Features

Power Input: 10.8 - 16 VDC

Compass-safe distance: 7.87" (200 mm)

Stereo Features

Peak power: 280 W

Rated power output (2 ohm): 43 watts RMS x 4 @ 14.4 V input < 10% THD

Rated power output (4 ohm): 26 watts RMS x 4 @ 14.4 V input < 10% THD

Built-in Digital Signal Processing (DSP): yes (with custom DSP profile setup using Fusion-Link™ app)

PartyBus™-network capabilities: yes (wired)

Fusion-Link™ control: yes (MFD, smart device and Garmin watch)

Multi-Zone™ technology: 3 zones BLUETOOTH® wireless technology ANT® wireless technology    SiriusXM-ready DAB+ ready     Optical audio input Supports ERX wired remote
Supports NRX wired remote

Multi-language interface: Bulgarian, Chinese (Simplified), Chinese (Traditional), Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean,
Norwegian, Polish, Portuguese-Brazil, Portuguese-Portugal, Slovenian, Spanish, Swedish, Thai, Turkish

Software updates: Over-the-air updates via Fusion-Link™ app / USB

Warranty    : 3years

Supported sources: AM, FM, BLUETOOTH®, Apple® AirPlay® 2, digital optical input, USB audio, iPhone®, iPod®, AUX x1, UPnP, MTP SiriusXM-Ready (U.S. only, requires optional
SiriusXM Connect vehicle tuner) DAB+ ready (available in Europe and Australia only)

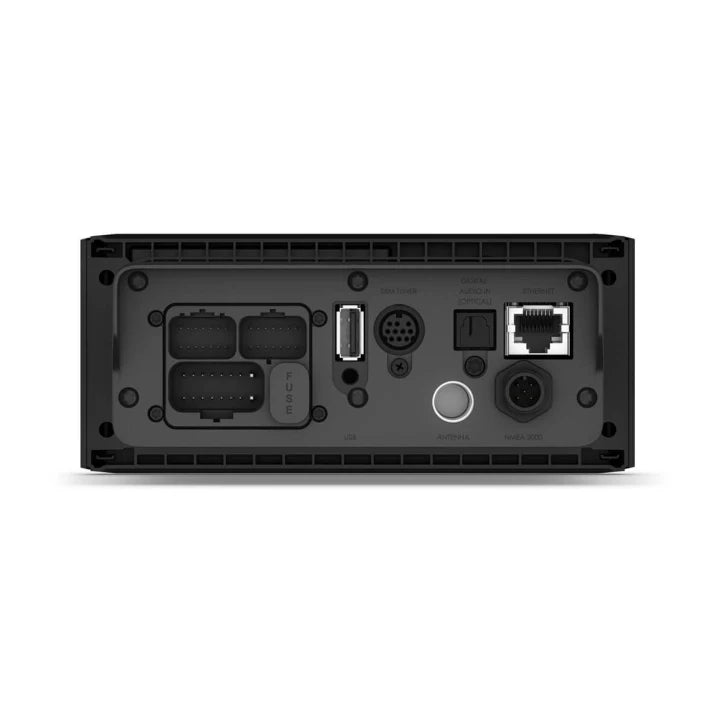

Connections

Auxiliary inputs (RCA): 1

Optical audio inputs (Digital Optical Input SPDIF): 1

Ethernet ports: 1

NMEA 2000® ports: 1

USB 2.0 ports: 1

SiriusXM ports: 1

AM/FM ports (Motorola antenna connector): 1

Speaker connections: 4 (2 zone amplified)

RCA pre-out (left, right and subwoofer): 3 zones (requires external amplification)

Line out: 3 (L + R per zone, requires external amplification)

Subwoofer out: 3 (1 mono output per zone, requires external amplification)

What's in the Box:

1 x Fusion MS-RA670 marine stereo

1 x Mounting gasket

4 x 8-gauge, self-tapping screws

2 x screw covers

1 x Power and speaker wiring harness

1  Auxiliary-in, line-out, and subwoofer-out wiring harnesses

1 x Dust cover

1 x 6 ft (2 meter) NMEA 2000 drop cable

1 x Documentation
