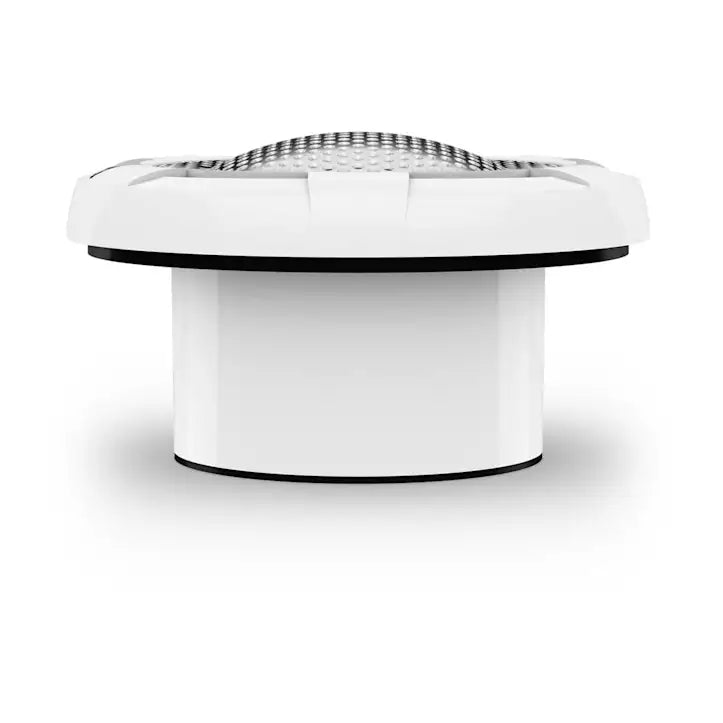

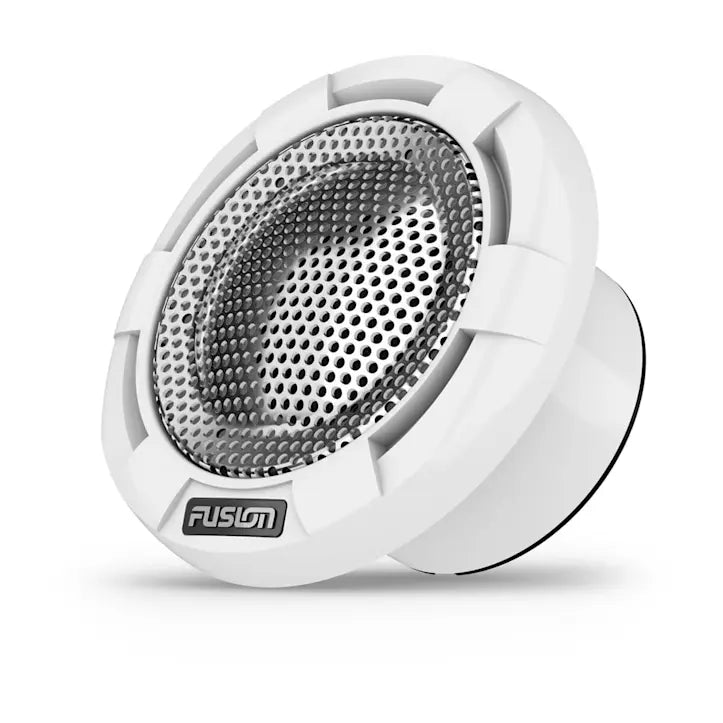

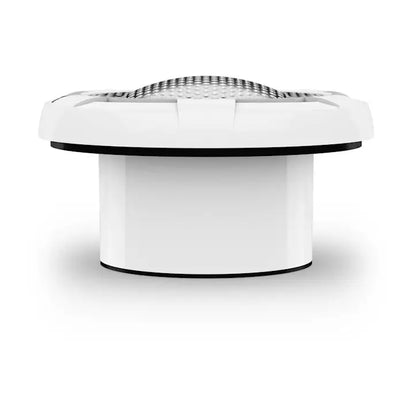

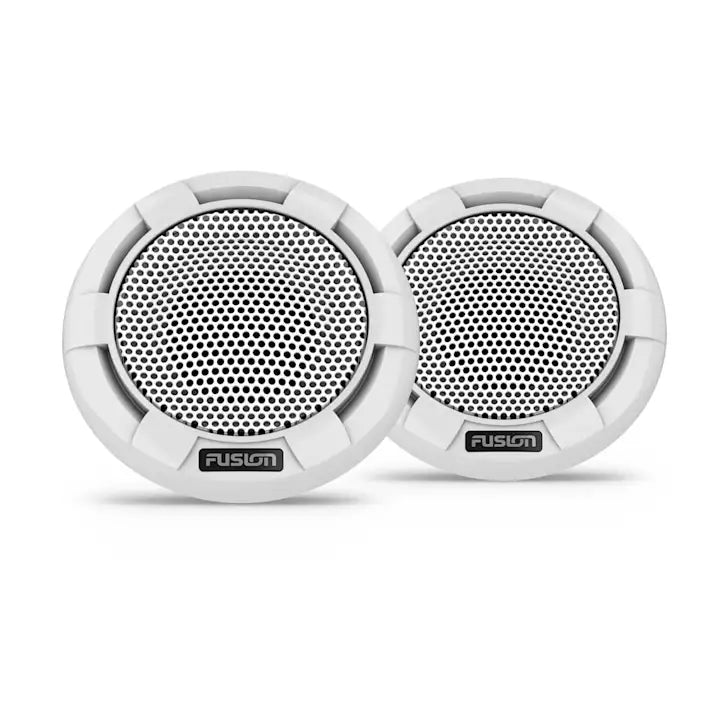

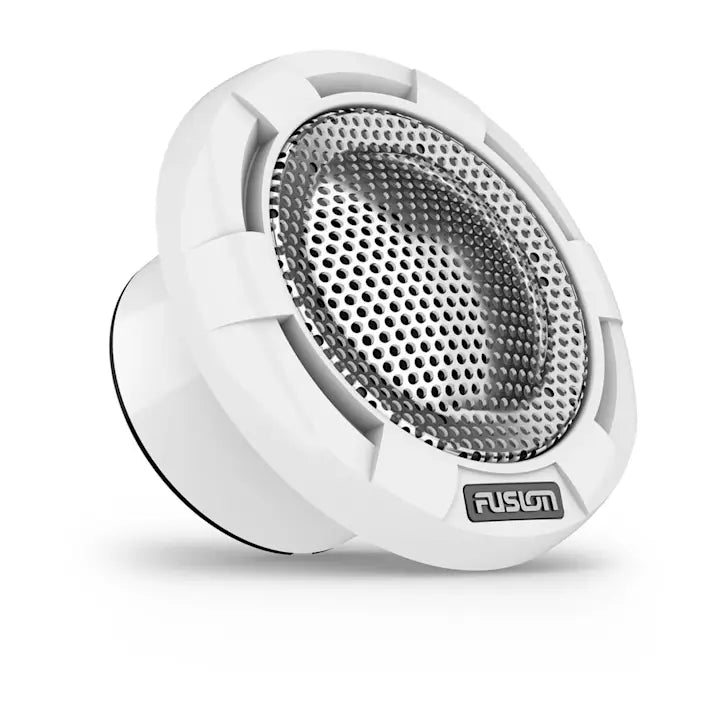

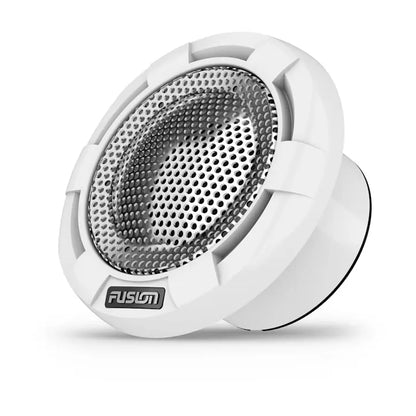

Garmin SG-TW101SPW

Garmin SG-TW101SPW

Add the charm of tweet to your marine sound system with Garmin SG-TW101SPW, the Fusion Signature Series 3i Component Tweeters that are marinized to be dash-mounted in raised positions to deliver crystal clear audio in high frequencies amidst engine, wind and wave noise.

The compact form factor boasts of a low-profile mounting design coupled with IP65 weather rating, making it the ultimate tweeter to amplify your audio experience. This TrueMarine design comes with 3 years warranty and is a convenient plug-and-play module with water-resistant connectors, tailor-made for aquatic adventures.

Specifications:

Physical dimensions (diameter x depth): 2.91" x 1.64"

Weight: 4.2 oz

Water and dust rating: IP65

Tweeter size: 1"

Peak power (watt): 330 W

RMS power (watt): 60 W

Sensitivity (1 W / 1 m): 91 dB

Frequency response: 3 kHz - 20 kHz

Nominal impedance: 4 ohms

Recommended amplifier power (RMS): 25 - 140 W/Ch

Operating temperature range: 32° to 122° F (0° to 50° C)

Voice coil diameter: 1"

Material: Aluminum dome

Tweeter connection: Flying lead with water-resistant 2-way connector, 5.9" (150 mm)

Compass-safe distance: 43.3" (110 cm)

Warranty    : 3 years

Mounting diameter clearance: 2.01" (51 mm)

Mounting depth clearance: 1.22" (31 mm)

What's in the Box:

1 x Pair of component tweeters

6 x Phillips stainless steel mounting screws (3.5 mm x 25.4 mm (6 gauge x 1”))

2 x Water-resistant cable assembly with 2-pin connector (5.9" (150 mm))

1 x Documentation
